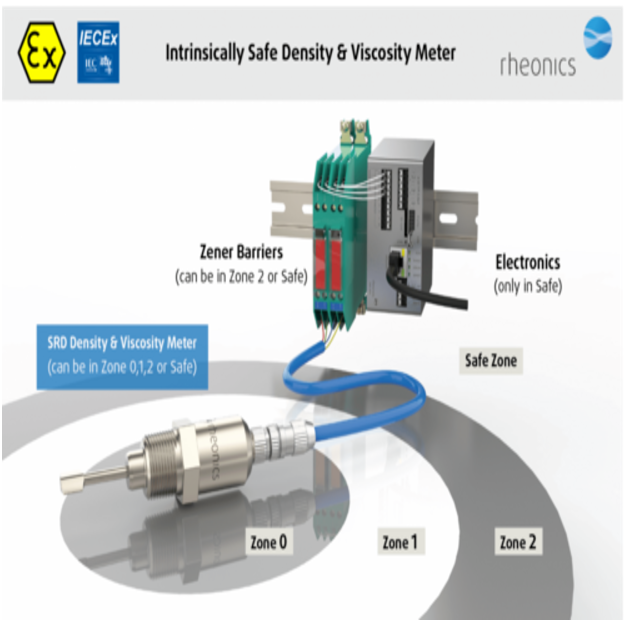

Send InquiryRheonics SRD Inline process Density meter and Viscometer
Price 0.1 INR/ Set
MOQ : 1 Set
Rheonics SRD Inline process Density meter and Viscometer Specification
- Measuring Range
- Density: 0.5 to 3 g/cm ; Viscosity: 1 to 10,000 mPa s Celsius (oC)
- Port Size
- 1.5 (DN40, Tri-Clamp standard), other sizes available
- Operating Voltage
- 24 VDC Volt (V)
- Power Supply
- 24 VDC, <10 W consumption
- Equipment Type
- Inline Process Density Meter and Viscometer
- Humidity
- 0-95% RH, non-condensing
- Resolution
- Density: 0.0001 g/cm , Viscosity: 0.1 mPa s
- Test Range
- Density: 0.5 to 3 g/cm , Viscosity: 1 to 10,000 mPa s
- Application
- Liquid process monitoring, mixing, blending, quality control, food & beverage, oil & gas, chemicals, pharmaceuticals, ink & paint
- Automation Grade
- Fully automatic, suitable for integration into process control systems
- Accuracy
- Density: 0.001 g/cm , Viscosity: 1% of reading %
- Interface Type
- 4-20 mA, RS485 Modbus, HART, Ethernet (optional)
- Features
- No moving parts, maintenance-free, CIP/SIP compatible, IP69K rated, robust stainless steel construction
- Gas Pressure
- Up to 150 bar (custom options available) Bar
- Mounting Type
- Inline, standard Tri-Clamp fitting
- Max Height
- Sensor Body: 172 mm (without fitting)
- Temperature
- -40 C to +150 C (higher on request) Celsius (oC)
- Response Time
- <1 second Seconds
- Specimen Size
- Inline, not specimen-based Millimeter (mm)
- Display Type
- Digital (interface to external systems)
- Usage
- Real-time density and viscosity measurement in-process
- Capacity
- Designed for continuous inline measurement Kg
- Machine Weight
- ~2.2 kg (sensor only, without flanges) Kilograms (kg)
- Control Mode
- Automatic, digital output via interface
- Ingress Protection
- IP69K (highest ingress protection for washdown)
- Process Connections
- Tri-Clamp, DIN, ANSI, JIS flanges available
- Cleaning
- CIP (Clean-in-Place) and SIP (Steam-in-Place) compatible
- Output Options
- 4-20 mA, Modbus RS485, Ethernet (optional), HART (optional)
- Reaction to Vibration
- Insensitive to pipe vibration
- Maintenance
- No recalibration required, virtually maintenance-free
- Maximum Process Flowrate
- No limit (designed for inline use)
- Enclosure Finish
- Electropolished
- Self-Diagnostics
- Continuous monitoring, error outputs
- Sensor Material
- 316L/1.4404 stainless steel (wetted parts), other alloys on request
- Process Fluid Compatibility
- Acids, bases, solvents, oils, water, food-grade liquids
- Installation Orientation
- Any orientation
- Firmware Upgradable
- Yes, via digital interface
- Ambient Temperature Range
- -40C to +80C
Rheonics SRD Inline process Density meter and Viscometer Trade Information
- Minimum Order Quantity
- 1 Set
- Payment Terms
- Cash Advance (CA), Cash on Delivery (COD)
- Supply Ability
- 2000 Sets Per Week
- Delivery Time
- 10 Days
- Sample Available
- Yes
- Sample Policy
- Within a certain price range free samples are available
- Packaging Details
- yes
- Main Export Market(s)
- Asia
- Main Domestic Market
- All India
- Certifications
- yes
About Rheonics SRD Inline process Density meter and Viscometer
Discover the hot-selling Rheonics SRD Inline Process Density Meter and Viscometer a special, valuable solution for real-time liquid monitoring. Engineered with majestic 316L stainless steel and soaring IP69K ingress protection, SRD stands out for its robust performance in acids, bases, oils, food-grade liquids, and more. With no moving parts and virtually maintenance-free design, its designed for continuous inline measurement, automated control, and seamless system integration. Grab yours to elevate process efficiency and achieve precision in quality control across your industry today!
Special Features and Application Surface
The Rheonics SRD Inline Density Meter and Viscometer features an electropolished enclosure, continuous self-diagnostics, and the highest washdown protection (IP69K). Its versatile process connectionsTri-Clamp, DIN, ANSI, JISmake it ideal for chemicals, food & beverage, pharmaceuticals, and oil & gas. Compatible with diverse liquids, its CIP/SIP compatibility and vibration insensitivity ensure reliable, precise measurements for mixing, blending, and process quality control.
Delivery Time & Domestic Market Supply
Delivery times for the Rheonics SRD Inline Density Meter and Viscometer are set to ensure prompt supply within Switzerlands domestic market. Goods transport is managed with care, supporting fast and secure shipping. Flexible payment terms are available to meet distributor and supplier needs. Whether supplying a single unit or bulk orders, Rheonics ensures that every delivery aligns with industry standards and customer expectations for efficiency and reliability.
Special Features and Application Surface
The Rheonics SRD Inline Density Meter and Viscometer features an electropolished enclosure, continuous self-diagnostics, and the highest washdown protection (IP69K). Its versatile process connectionsTri-Clamp, DIN, ANSI, JISmake it ideal for chemicals, food & beverage, pharmaceuticals, and oil & gas. Compatible with diverse liquids, its CIP/SIP compatibility and vibration insensitivity ensure reliable, precise measurements for mixing, blending, and process quality control.
Delivery Time & Domestic Market Supply
Delivery times for the Rheonics SRD Inline Density Meter and Viscometer are set to ensure prompt supply within Switzerlands domestic market. Goods transport is managed with care, supporting fast and secure shipping. Flexible payment terms are available to meet distributor and supplier needs. Whether supplying a single unit or bulk orders, Rheonics ensures that every delivery aligns with industry standards and customer expectations for efficiency and reliability.
FAQs of Rheonics SRD Inline process Density meter and Viscometer:
Q: How does the Rheonics SRD Inline process meter benefit liquid process monitoring?
A: It provides real-time density and viscosity measurements with high accuracy and rapid response, improving process control, product quality, and operational efficiency.Q: What materials and liquids are compatible with the SRD sensor?
A: SRD is constructed from 316L/1.4404 stainless steel and handles acids, bases, solvents, oils, water, and food-grade liquids, with other alloys available upon request.Q: When is recalibration or maintenance required for the SRD meter?
A: No recalibration is needed; the SRD operates virtually maintenance-free owing to its robust, no-moving-parts design and continuous self-diagnostics.Q: Where can the SRD density meter and viscometer be installed?
A: Its suitable for installation in any orientation on process lines, utilizing standard Tri-Clamp or other flanges, accommodating diverse industrial setups.Q: What process automation features does the SRD offer?
A: The SRD provides fully automatic operation with digital output options, allowing easy integration into control systems via 4-20 mA, RS485 Modbus, HART, or Ethernet.Q: How does SRD handle cleaning and harsh environments?
A: The meter is designed for CIP/SIP cleaning and boasts IP69K protection, resisting washdowns, vibrations, and extreme temperaturesfrom -40C to +150C.Technical Details
